应用范围/Applications：
长条/管材/异型碳纤维热压机主要生产高性能管材和长条型制品，棒球杆、冰球杆、拐杖、船浆、汽车尾翼等各种长条形碳纤维制品、玻璃纤维制品。

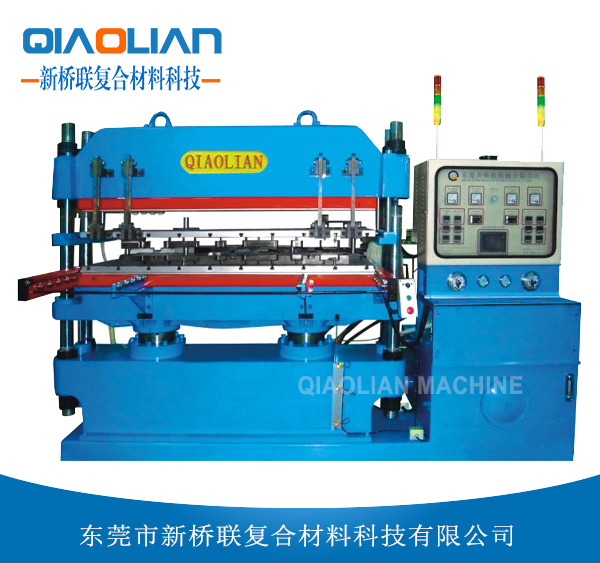

Strip/tubing/special-shaped carbon fiber hot press machine mainly produces high-performance tubular and strip products, baseball clubs, ice hockey clubs, crutches, ship pulp, automobile tail fins and other strip carbon fiber products, glass fiber products.
特点/Characteristics：
一、 可配机械自动开模，方便人员操作；
二、 采用比压比流或伺服油路设计，稳定、节能，上升下降速度可因使用需求调整；
三、 具有慢速校模功能，校模更精确、更安全。
1、It can be equipped with mechanical automatic mould opening, which is convenient for workers to operate.
2、Adopting specific pressure specific flow or servo oil circuit design, which is stable and energy-saving;increase in the rate of decline may be due to the use of demand adjustment;
3、Slow moving speed is available for alignment safer and more accurate.
技术参数/Technical parameters：
| 机型Type | CHM-460 | CHM-600 | CHM-900 | CHM-1000 | CHM-1200 |
| 台面Heating plate size(mm) | 460*1900 | 600*1200 | 900*1680 | 1000*2000 | 1200*2400 |
| 合模力Clamping Force(T) | 200T-500T | ||||
| 行程Stroke(mm) | 250-300 | 250-300 | 250-300 | 250-300 | 250-300 |
| 功率Power(KW) | 7.5 | 11 | 11 | 15 | 15 |
| 控制系统Control System | PLC+HMI | ||||
| 备注Remarks | 尺寸可定做 | ||||
*如有参数变更，恕不另行通知。We reserve the right to change any design and specification without ontice.
